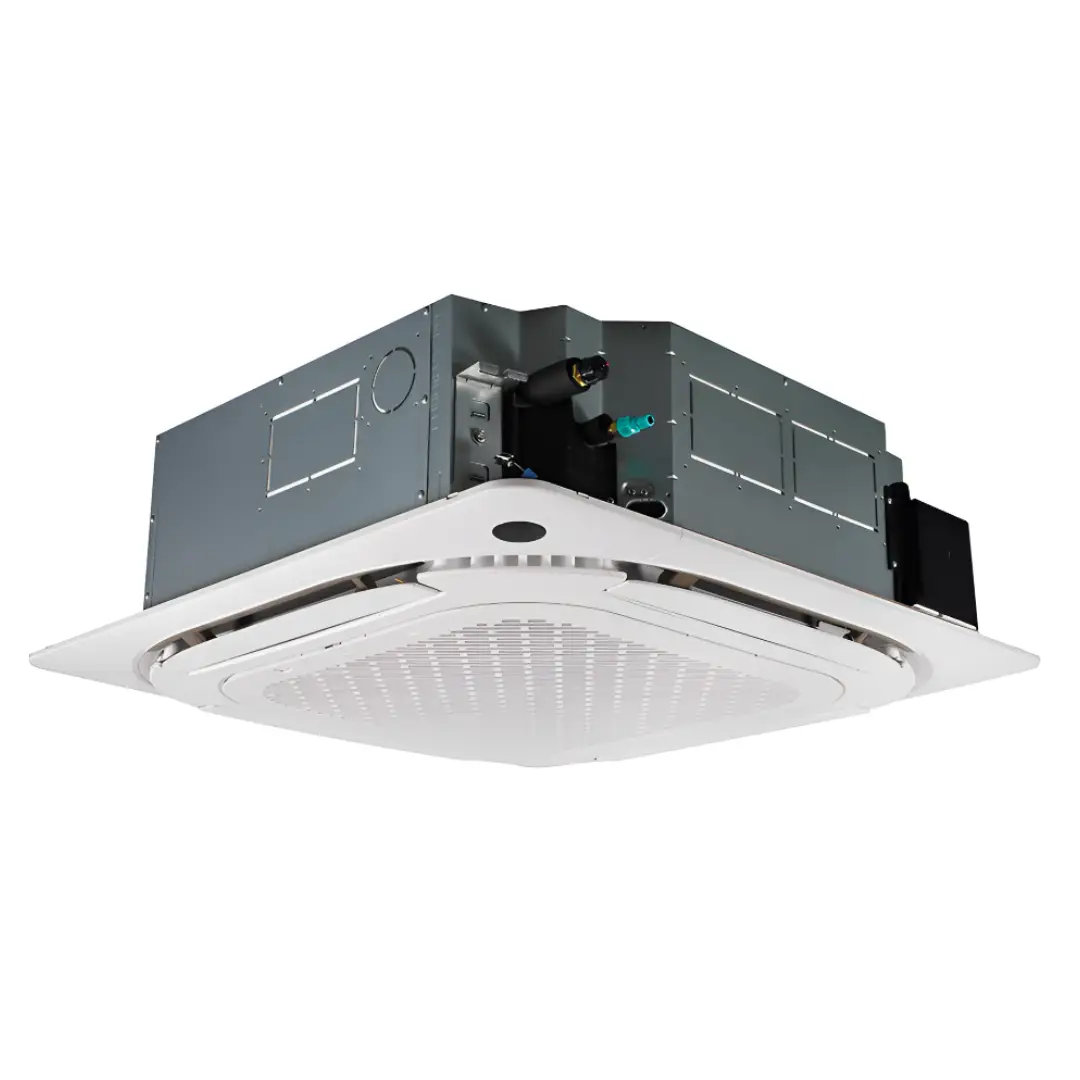

Midea 4 Ton Inverter Ceiling Cassette MCD1-48HRDN1-QW delivers 48,000 BTU cooling power with 360° air flow panel for uniform comfort. It features R410A refrigerant, Blue Fin coating, and a multi-bend heat exchanger, ensuring durability and energy efficiency.
With Wi-Fi control, 24-hour timer, and night mode, this Ceiling Air Conditioner offers smart convenience for modern spaces. Additionally, its built-in drain pump, sine-wave inverter compressor, and fresh air mixing system make it a reliable and eco-friendly Ceiling Cassette air conditioner.
Features
- Cooling Capacity 4 Ton
- (Cooling, Btu/hr) 48,000
- Display On/Off Yes
- Beep On/Off Yes
- 24-Hour Timer Yes
- Power Input: 0.96kW (Cooling) / 1.00kW (Heating)
- Operating Current: 4.4A (Cooling) / 4.5A(Heating)
- Indoor Unit: MCA3-12HRFN1-Q
- Outdoor Unit: MOUC-12HFN1-Q
- R410A Refrigerant
- Blue Fin
- Sine-Wave Inverter
- Aluminium heat exchanger with hydrophilic coating
- Built-in drain pump
- Wired remote control for indoor unit
- Compresor DC inverter
- Wi-Fi Control (Wi-Fi stick)
- 360°Air Flow Panel
- Night Mode
- The mixing of fresh air
- Redirecting the flow of air to neighboring rooms using air ducts
- Dry Mode
- Multi-Bend Heat Exchanger
Power
- Cooling Power: 3.520 … 13.600
- Heating Capacity: 4.100 … 16.000
Power consumption
- Cooling: 0.900 … 5.600
- Heating: 0.950 … 5.500
Energy Efficiency Ratio
- SEER (cooling mode): 6.10
- SCOP (heating mode): 4.00 … 5.00
- EER (сooling mode): 2.48
- COP (heating mode): 3.05
Outdoor Unit Model
-
Model Name: MOU1-48HDN1-RW
-
Compressor Type: Inverter
-
Compressor: GMCC Rotary DC
Refrigerant (Freon)
-
Freon Type: R410A
-
Freon Weight: 3.65 kg
Power Options
-
Voltage/Hz/Phase: 380/50/3
Performance
-
Air Flow Rate: 5,000 m³/h
-
Noise Level: 64.50 dB
Piping
-
Liquid Pipe Diameter: 9.52 mm
-
Gas Pipe Diameter: 15.90 mm
-
Minimum Length of Main Line: 3 m
-
Maximum Length of Main Line: 50 m
-
Maximum Vertical Drop: 30 m
Dimensions & Weight
-
Dimensions (Without Package): 946 x 810 x 410 mm
-
Dimensions (With Package): 1090 x 885 x 500 mm
-
Net Weight: 86.70 kg
-
Gross Weight: 91.40 kg
Midea 4 Ton Inverter Ceiling Cassette MCD1-48HRDN1-QW is a premium Ceiling Air Conditioner built for large spaces such as offices, showrooms, and conference halls. With a powerful 48,000 BTU cooling capacity, it ensures efficient performance while maintaining low energy consumption.
Cooling & Heating Efficiency
Firstly, this unit offers a wide cooling range of 3.520 to 13.600 kW and a heating capacity of 4.100 to 16.000 kW. Moreover, its DC inverter compressor and sine-wave inverter technology ensure quiet operation and maximum efficiency. Additionally, the Blue Fin coating and multi-bend heat exchanger enhance durability and performance.
Smart Features
In addition to cooling power, it includes Wi-Fi control, a 24-hour timer, and night mode for ultimate convenience. Furthermore, the 360° air flow panel provides even air distribution, while the fresh air mixing system improves indoor air quality. With beep on/off settings and a wired remote controller, operation becomes easy and customizable.
Design & Convenience
Finally, the built-in drain pump, aluminum heat exchanger with hydrophilic coating, and internal safety features ensure long-lasting reliability. This Ceiling Cassette air conditioner not only saves energy but also adds comfort and style to modern interiors.
