Key Features
- Power Supply: 100–240V AC, ~50/60Hz
- Networked Standby Power: < 2.0W
- Operating Temperature: 0°C – 45°C
Audio Specifications
- Total Speaker Power Output: 720W (Max @ THD 1%)
- Soundbar Output Power: 340W
- Surround Speaker Output Power: 2 × 40W
- Subwoofer Output Power: 300W
- Soundbar Transducers: 3 × (46×90)mm racetrack drivers, 3 × 0.75″ (20mm) tweeters, 2 × 2.75″ (70mm) up-firing full-range drivers
- Surround Speaker Transducer: 1 × (46×90)mm racetrack driver
- Subwoofer Transducer: 10″ (260mm)
- Frequency Response: 35Hz – 20kHz (-6dB)
- Audio Inputs: 1 Optical, Bluetooth, Chromecast Built-in, AirPlay, Alexa MRM, USB (US version supports playback)
Dimensions & Weight
- Total Soundbar Dimensions (W x H x D): 1174 × 56 × 120 mm / 46.2″ × 2.2″ × 4.7″
- Main Soundbar Dimensions: 884 × 56 × 120 mm / 34.8″ × 2.2″ × 4.7″

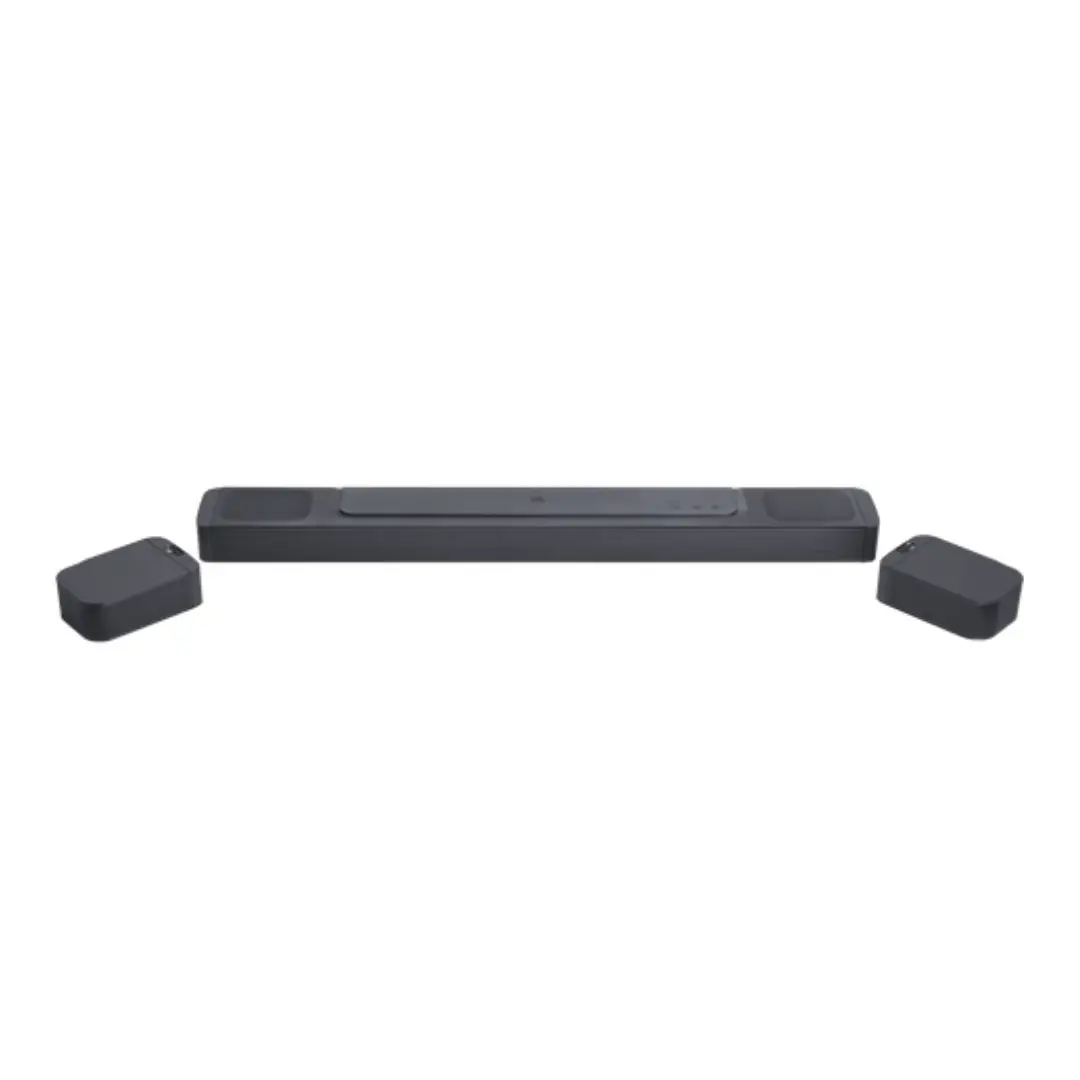

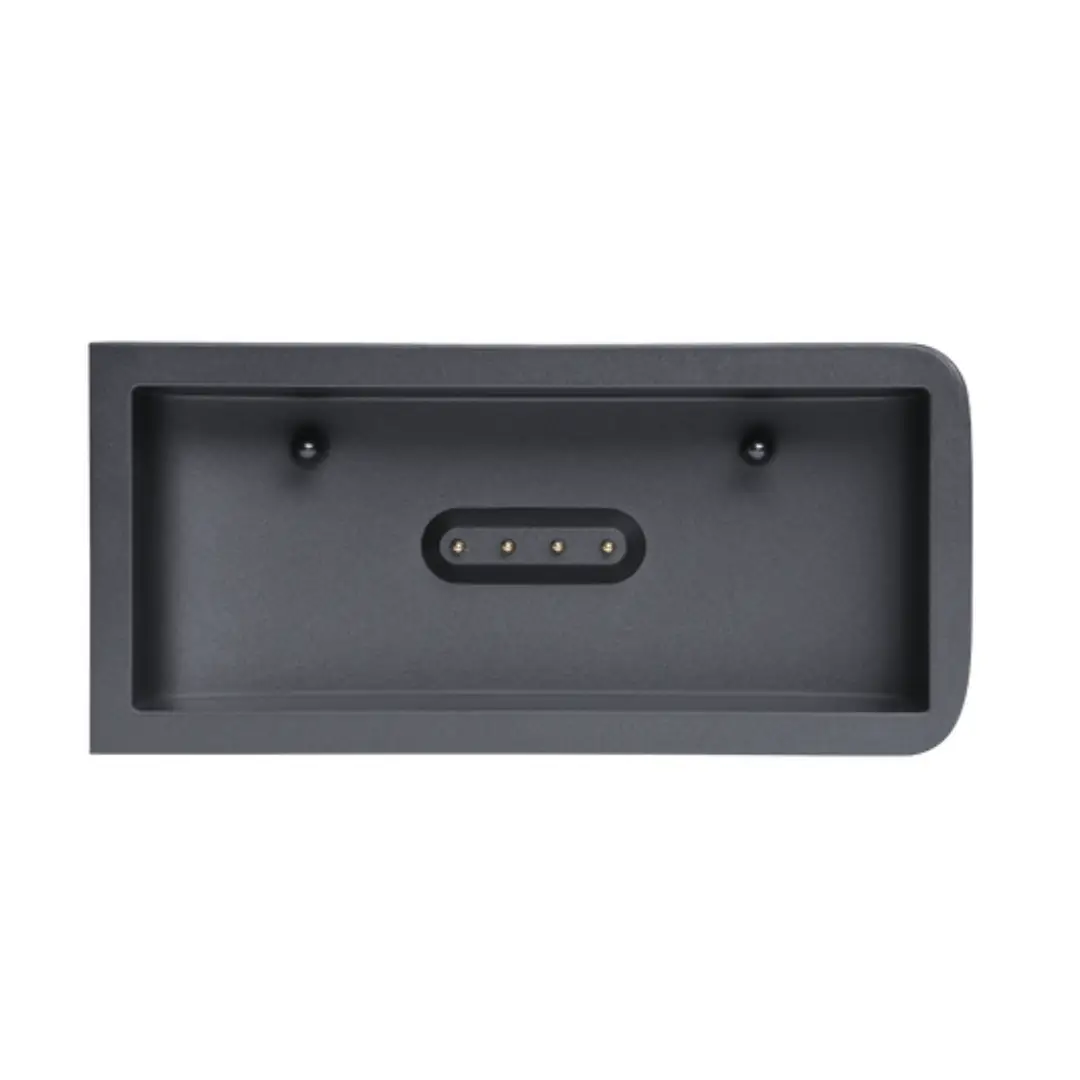

- Detachable Surround Speaker Dimensions (each): 145 × 56 × 120 mm / 5.7″ × 2.2″ × 4.7″
- Subwoofer Dimensions: 305 × 440.4 × 305 mm / 12″ × 17.3″ × 12″
- Soundbar Weight: 3.4 kg / 7.4 lbs
- Surround Speaker Weight (each): 1.3 kg / 2.8 lbs
- Subwoofer Weight: 10 kg / 22 lbs
- Packaging Dimensions: 1000 × 375 × 475 mm / 39.4″ × 14.8″ × 18.7″
- Packaging Weight: 18.9 kg / 41.6 lbs
Control & Connectivity
- USB Port: Type A (5V DC, 0.5A)
- Supported File Format: MP3 (MPEG 1/2/2.5 Layer 3)
- Sampling Rate: 16–48 kHz
- Bitrate: 80–320 kbps
- Bluetooth Version: 5.0
- Bluetooth Profiles: A2DP 1.2, AVRCP 1.5
- Bluetooth Frequency Range: 2400–2483.5 MHz
- Bluetooth Power: <15dBm (EIRP)
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- Wi-Fi Power (2.4G): <20dBm (EIRP)
- Wi-Fi Power (5G): Up to <23dBm (EIRP)
- 2.4G Wireless Frequency Range: 2406–2474 MHz
- 2.4G Wireless Power: <10dBm (EIRP)
- Battery: Lithium 3.635V, 3283mAh
Video Specifications
- HDMI Video Input: 1
- HDMI Video Output (with eARC): 1
- HDMI HDCP Version: 2.3
- HDR Pass Through: HDR10, Dolby Vision
