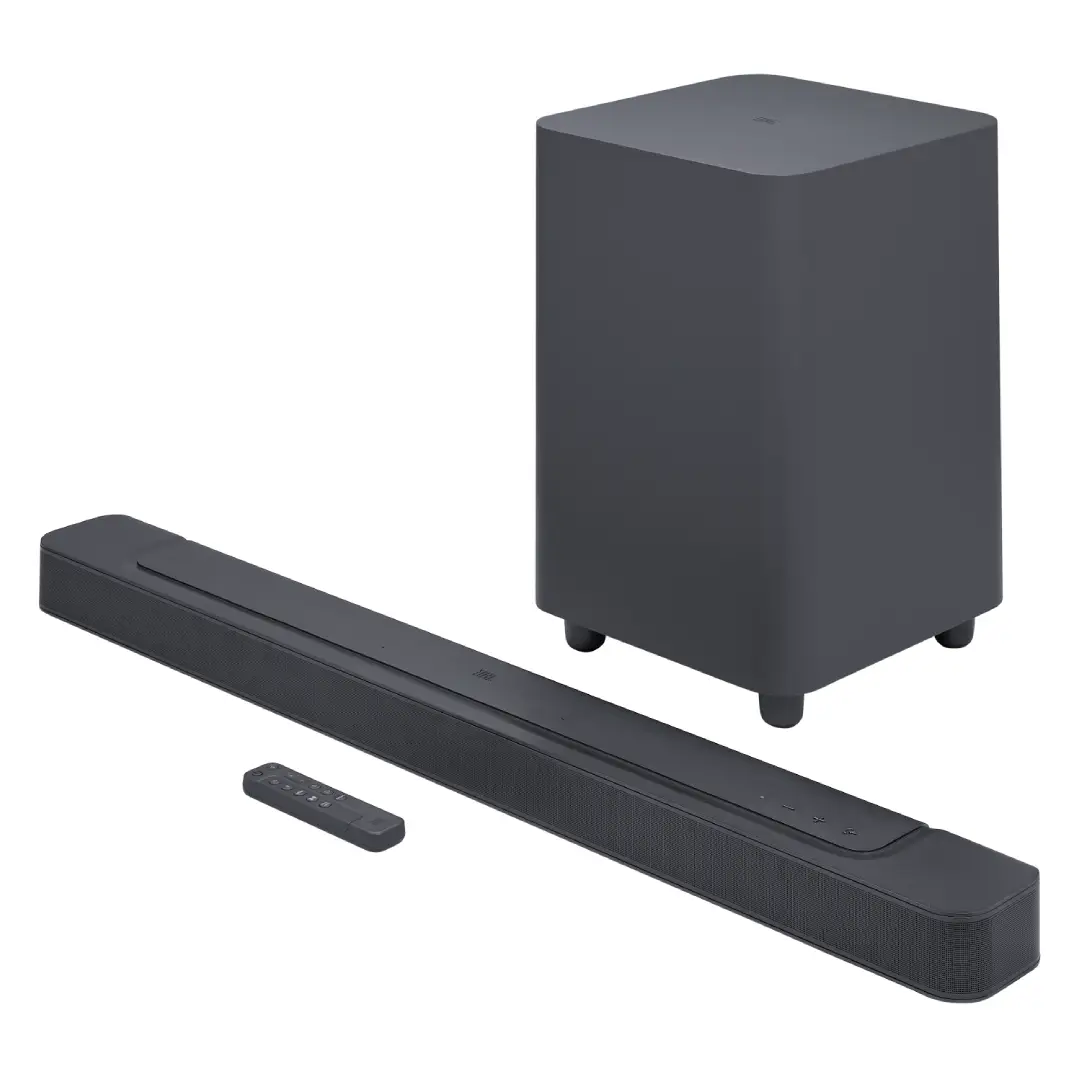

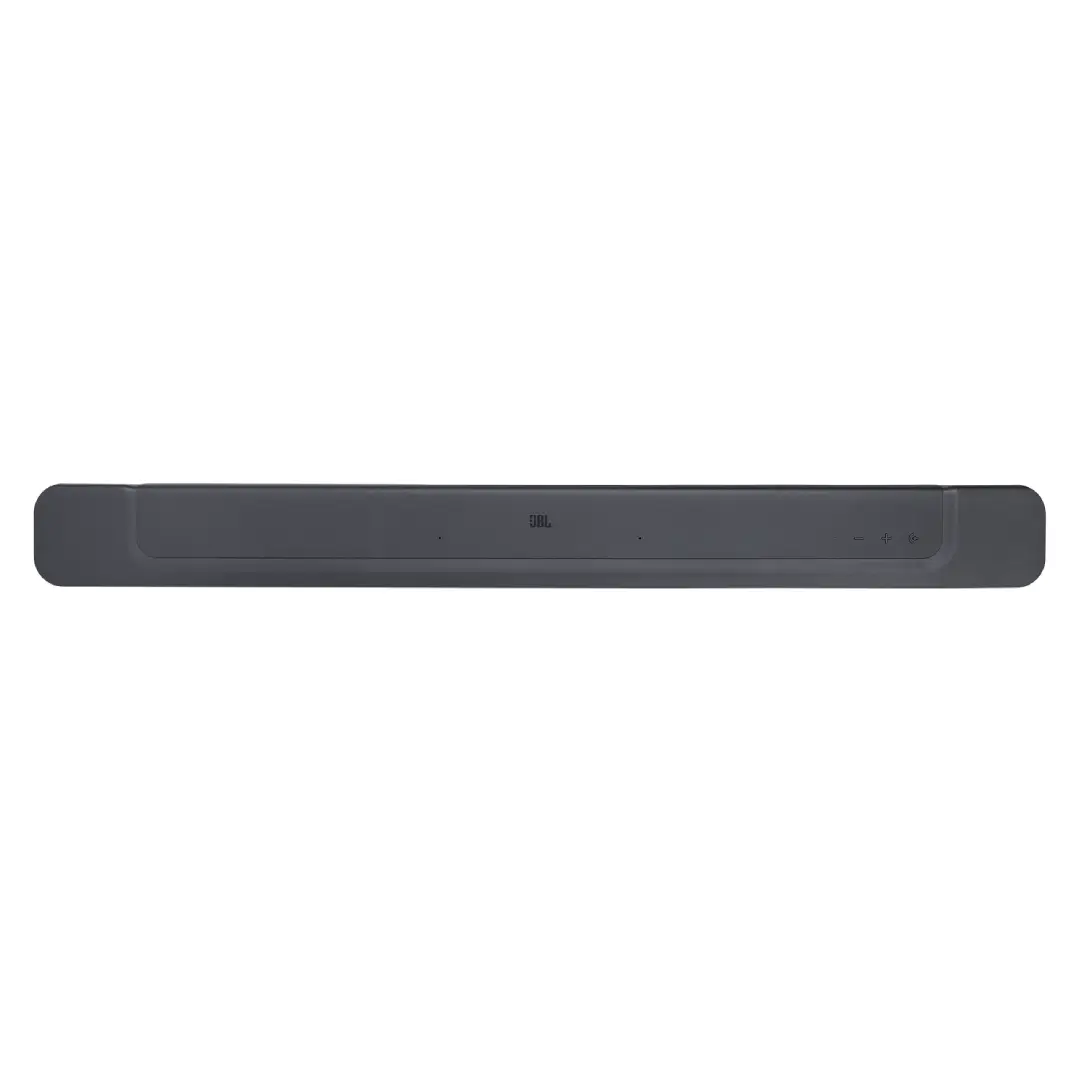

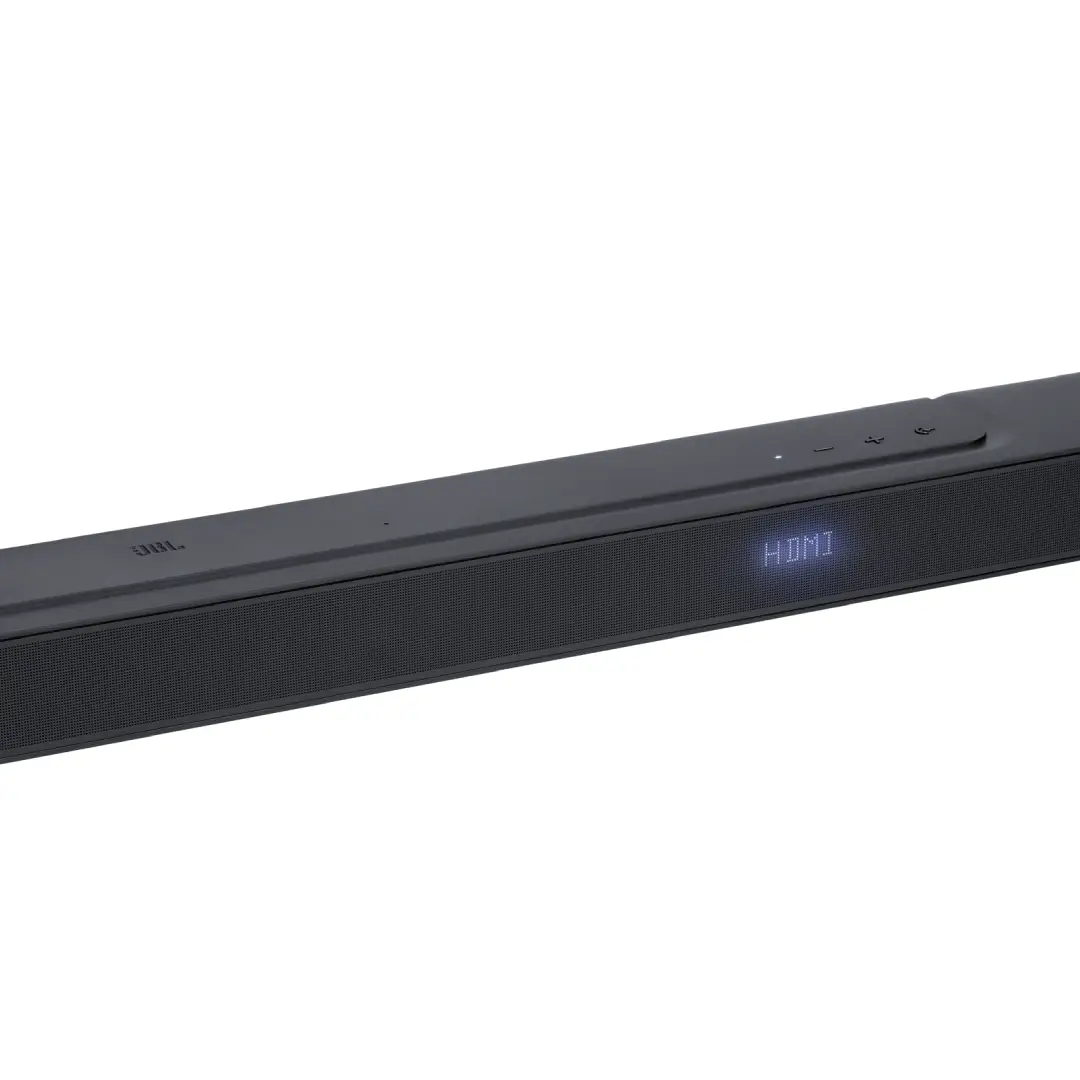

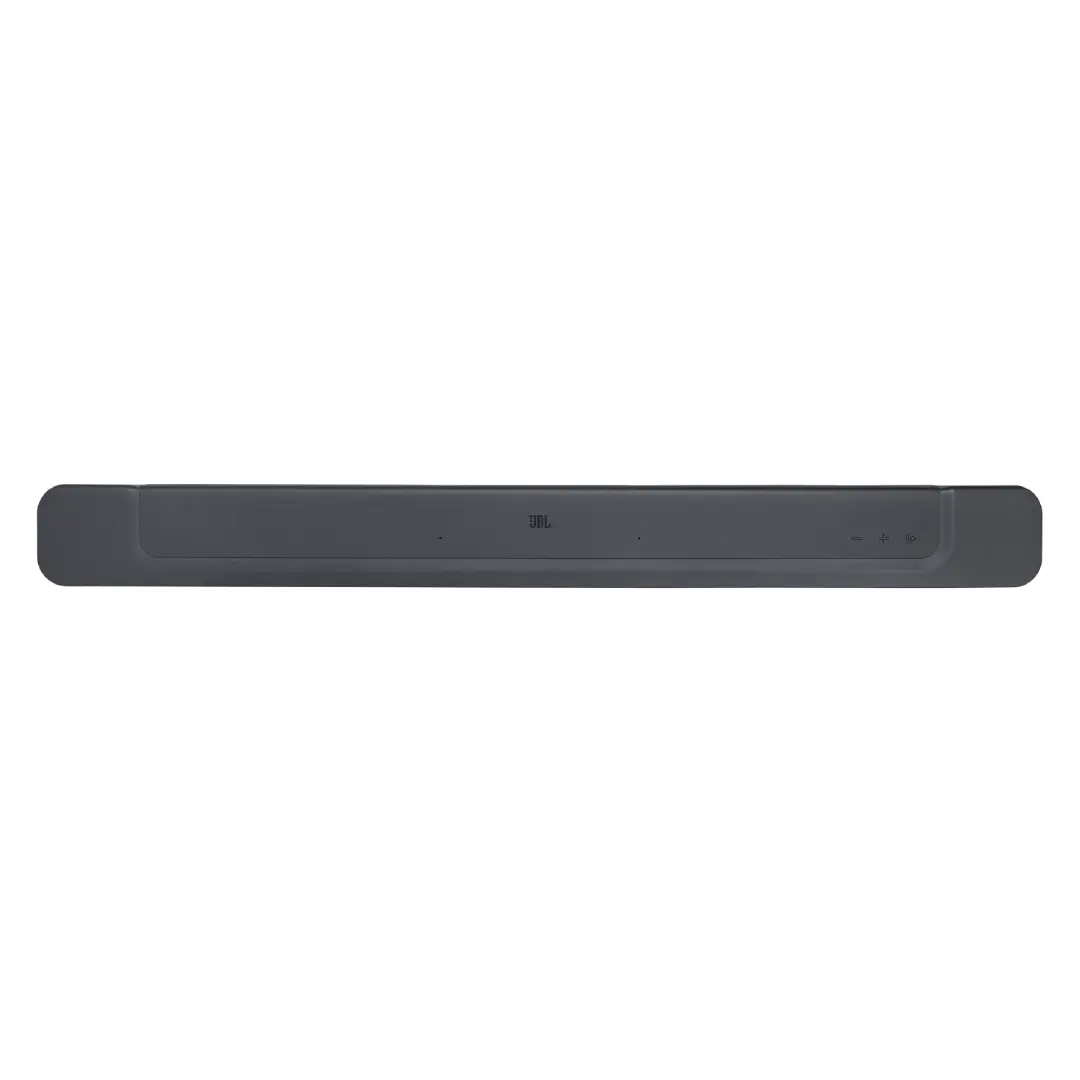

JBL Bar 500 Dolby Atmos Soundbar

General Specifications

• Power Supply: 100–240V AC, ~50/60Hz
• Networked Standby Power: < 2.0 W
• Operating Temperature: 0°C – 45°C

Audio Specifications

• Total Speaker Power Output (Max @THD 1%): 590W
• Soundbar Output Power (Max @THD 1%): 290W
• Subwoofer Output Power (Max @THD 1%): 300W
• Soundbar Transducers: 4× (46×90)mm racetrack drivers, 3× 0.75″ (20mm) tweeters

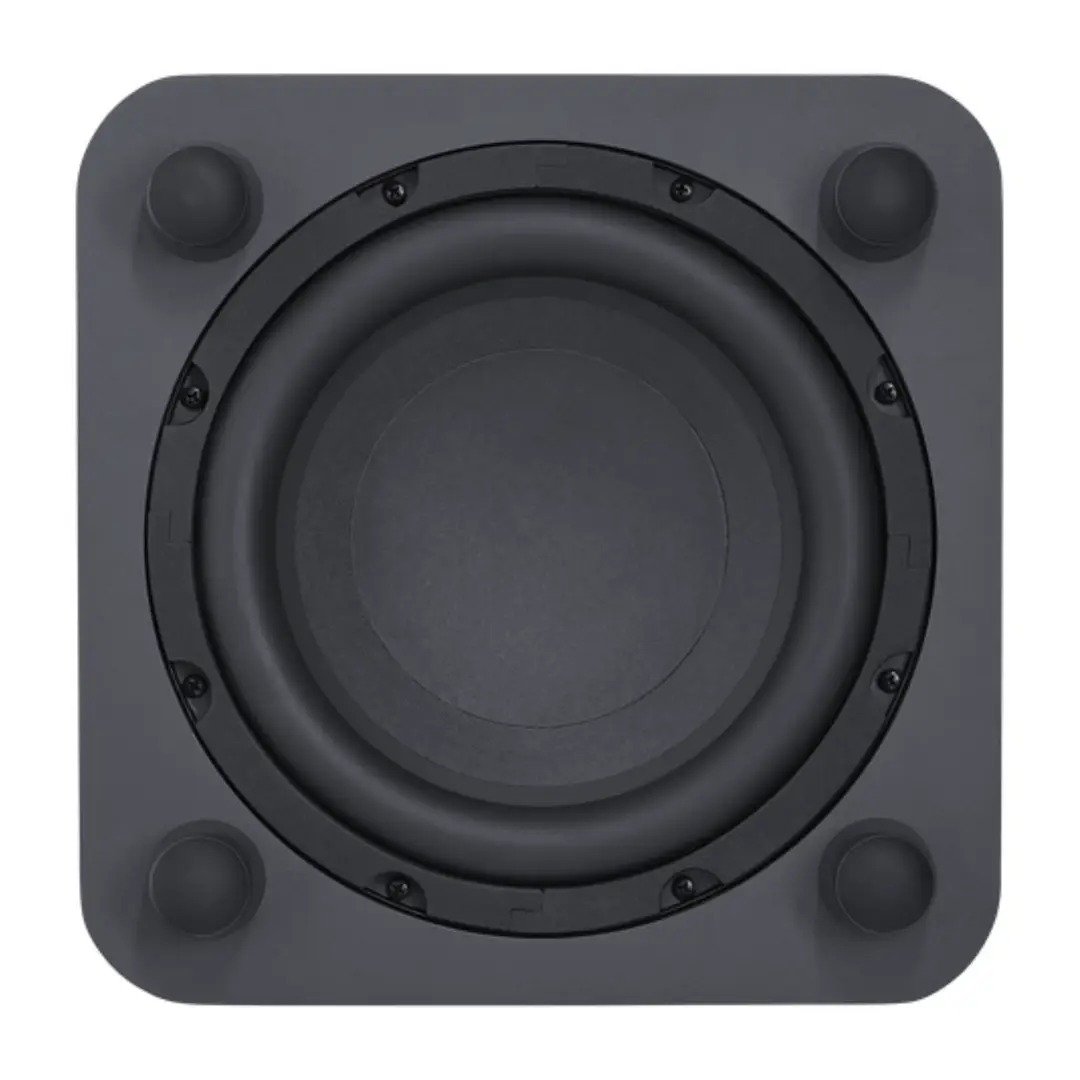

• Subwoofer Transducer: 10” (260mm)
• Frequency Response: 35Hz – 20kHz (-6dB)
• Audio Inputs: 1 Optical, Bluetooth, USB (USB playback available in US version; others for service only)

Dimensions & Weight

• Soundbar (W×H×D): 1017 × 56 × 103.5 mm / 40” × 2.2” × 4”
• Subwoofer (W×H×D): 305 × 440.4 × 305 mm / 12” × 17.3” × 12”
• Soundbar Weight: 2.8 kg / 6.2 lbs
• Subwoofer Weight: 10 kg / 22 lbs
• Packaging Dimensions (W×H×D): 1105 × 370 × 475 mm / 43.5” × 14.6” × 18.7”
• Packaging Weight: 16.2 kg / 35.6 lbs

Control & Connection Specifications

• USB Port: Type-A
• USB Rating: 5V DC, 0.5A
• Supported File Format: MP3
• MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 Sampling Rate: 16 – 48 kHz
• MP3 Bitrate: 80 – 320 kbps
• Bluetooth Version: 5.0
• Bluetooth Profile: A2DP 1.2, AVRCP 1.5
• Bluetooth Frequency Range: 2400 MHz – 2483.5 MHz
• Bluetooth Transmitter Power: < 15 dBm (EIRP)
• Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi Frequency Range: 2412 – 2472 MHz
• 2.4G Wi-Fi Power: < 20 dBm (EIRP)
• 5G Wi-Fi Frequency Range: 5.15 – 5.825GHz
• 5G Wi-Fi Power: 5.15–5.25GHz <23dBm; 5.25–5.35GHz & 5.47–5.725GHz <20dBm; 5.725–5.825GHz <14dBm
• 2.4G Wireless Frequency Range: 2406 – 2474 MHz
• 2.4G Wireless Power: < 10 dBm (EIRP)

Video Specifications

• HDMI Video Input: 1
• HDMI Video Output (with eARC): 1
• HDMI HDCP Version: 2.3
• HDR Pass Through: HDR10, Dolby Vision
